Bumper HURST eDraulic Rescue Tool
|
|
Rescue Squad 7
|
|
|
Walk In to the rear
|
|
Custom Mud Flap with Hinged rear step
|
|
|

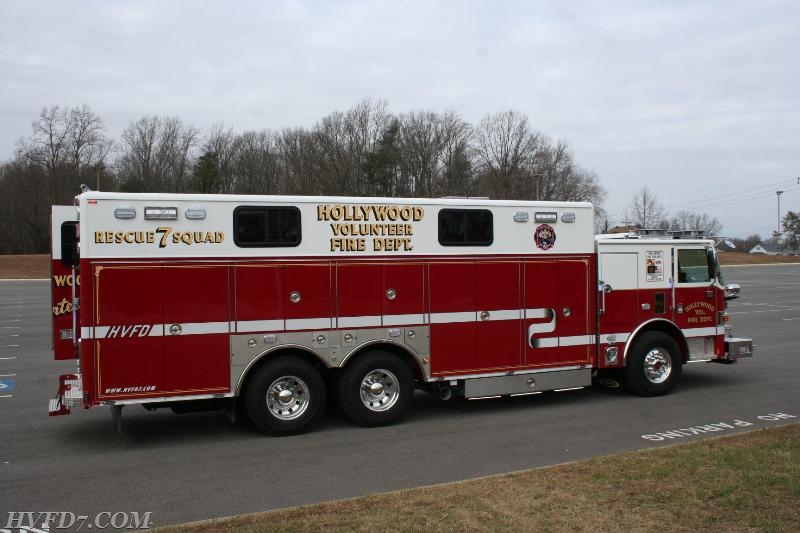

Driver Side Profile
|
|
This unit is equipped with multiple anchor points. This one is located on the Drivers side front Bumper and is a 9,000# Anchor Point/Receiver tube for portable winch
|
|
|

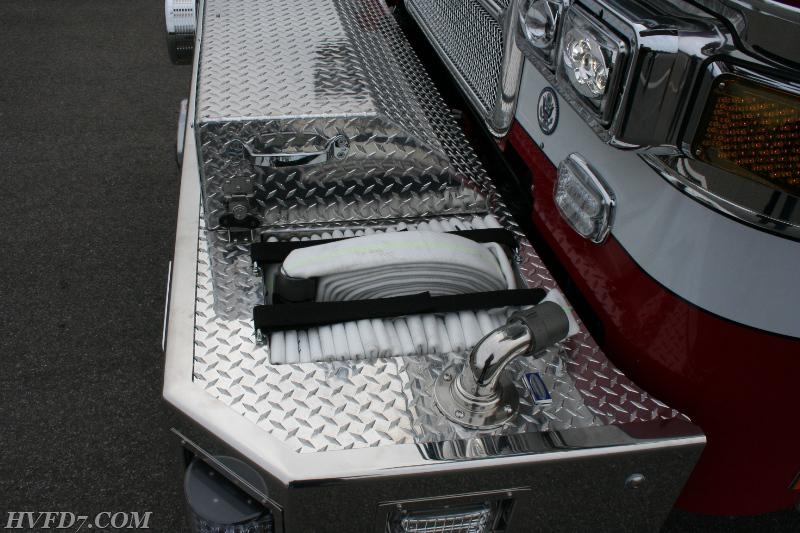

150' of Pre-Connected Hand line
|
|
The front bumper has a 15,000# Winch along with 2 additional 9,000# Anchor Point/Receiver tube for portable winch
|
|
|

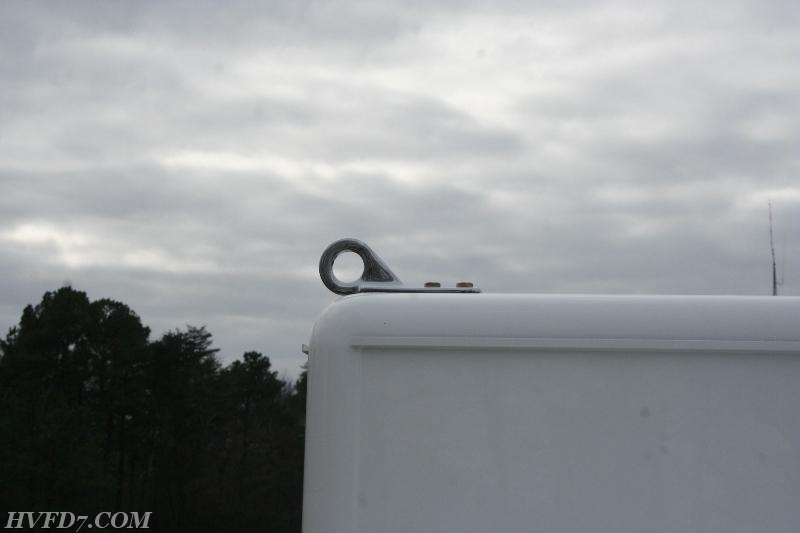

Along with the lower Anchor points, we have 4 "High side" anchor points on the roof of the body. These Anchor Points are rated at 3,000# each.
|
|

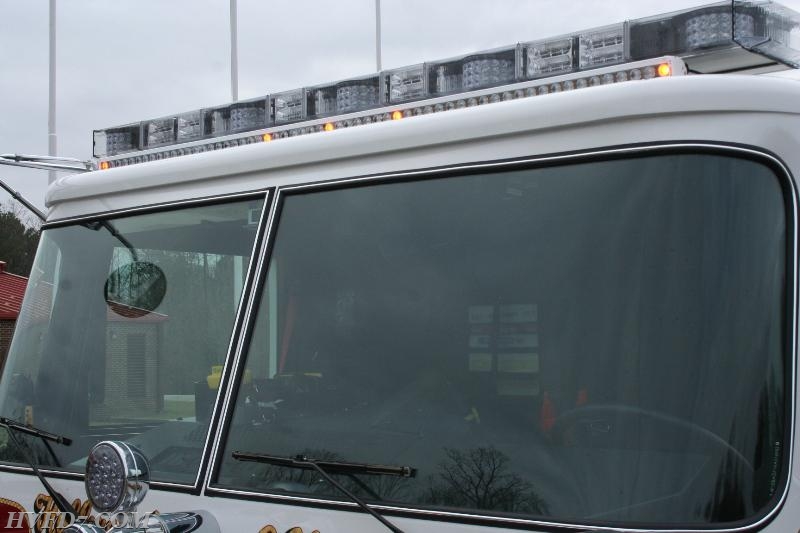

With the constant change in scene lighting and LED, we went with a 72" front Hi Viz Visor Light .
|
|
|

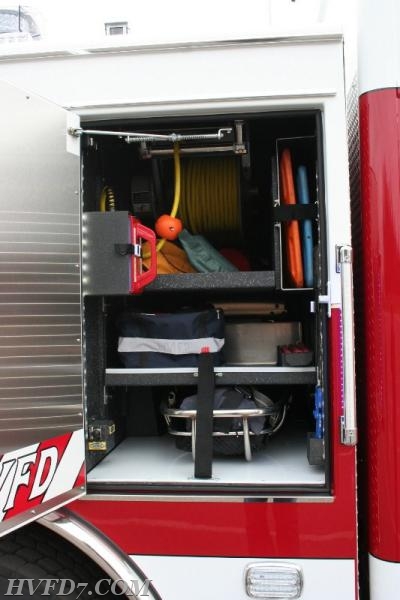

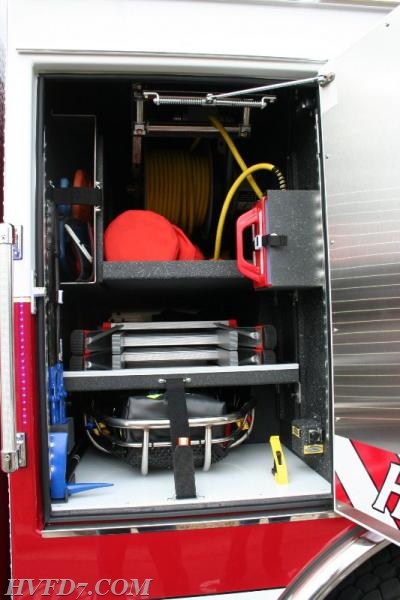

Drivers side Cab transverse compartment has 200' cord reel, SKED, LSP Backboard, KED, backboards, traffic cones and flares, bolt cutters, and stokes basket with all RIT equipment. The stokes basket can be retrieved from either side.
|
|

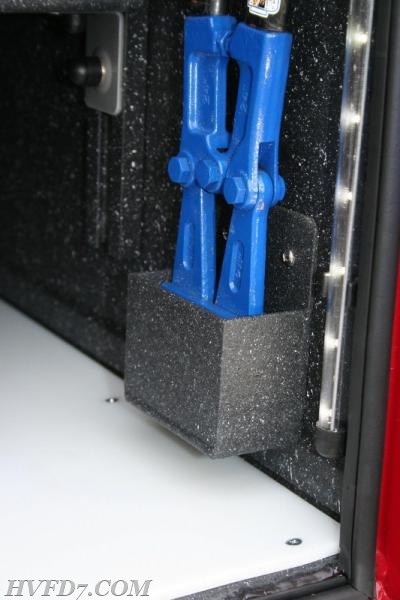

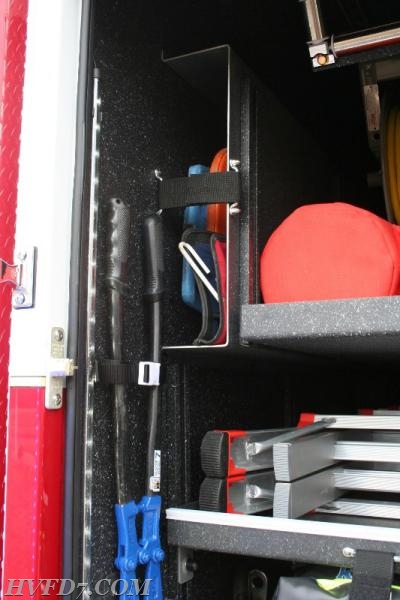

Bolt Cutters on both sides
|
|
|

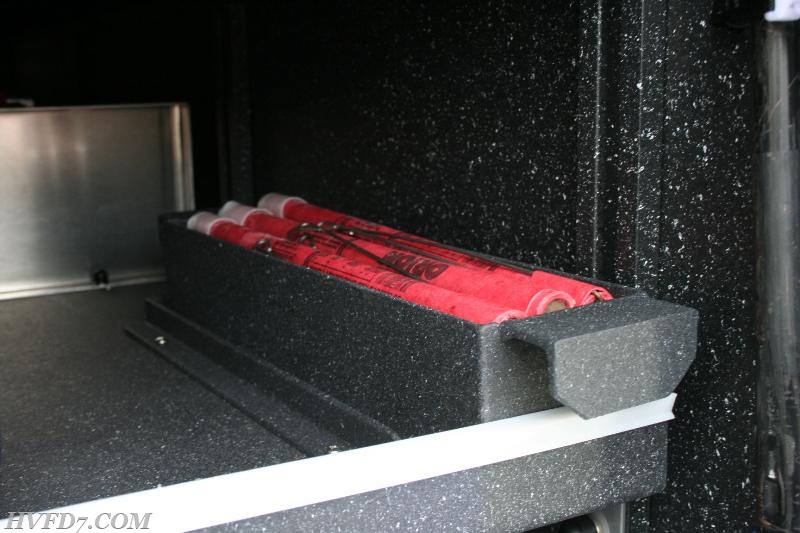

Custom Made Removal Flare Box
|
|
J-Box for 200' Electric reel
|
|
|

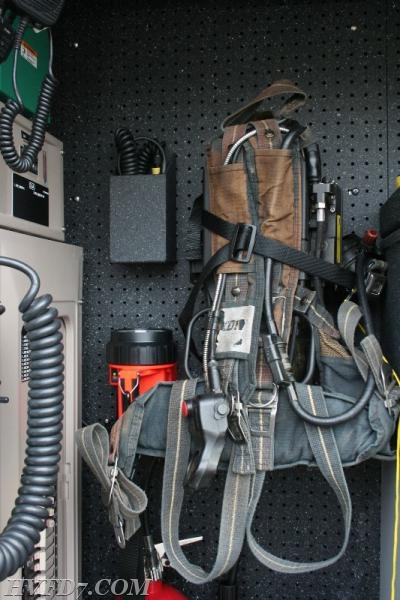

First compartment back is for the driver. Drivers gear, SCBA, hook, Radio, fire extinguishers, tool bag, Custom Tool Box, Pump, and appliances
|
|

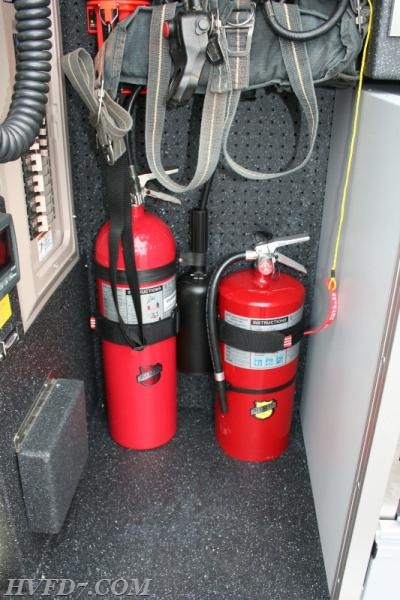

fire extinguishers
|
|
|

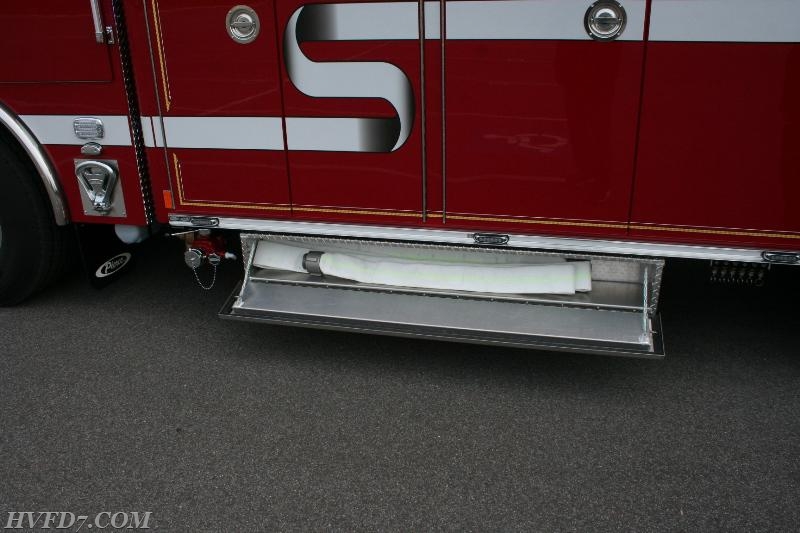

Drivers side under belly compartment with 25' short shot of 3" hose for filling up tank
|
|

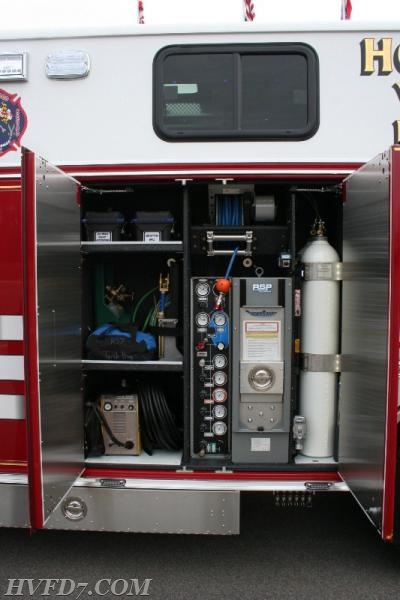

Air Compartment, with Air tool boxes, Plasma Cutter, Petrogen and Oxy-Acetylene torch, Pak Hammer 90, and Cascade System.
|
|
|

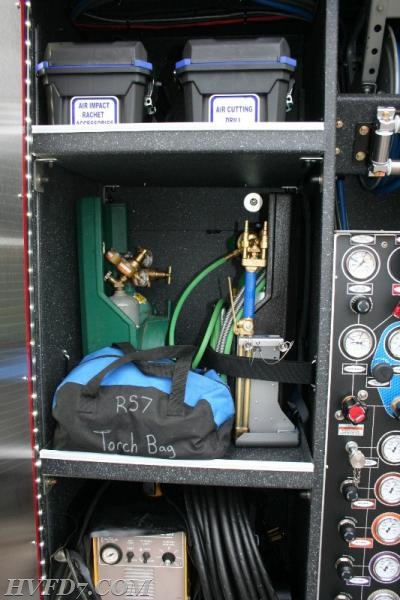

Petrogen and Oxy-Acetylene torches are located on the center shelf for ease of use
|
|

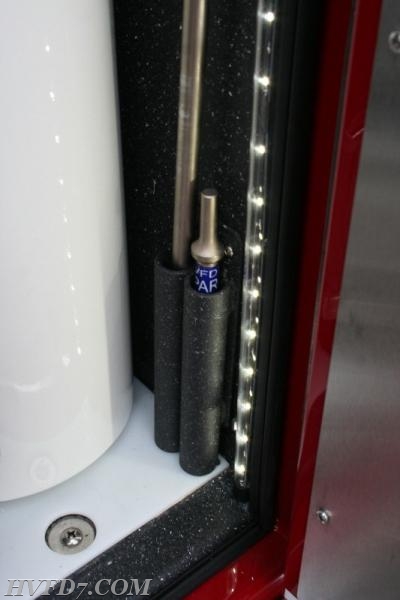

Pak Hammer 90 Bits
|
|
|

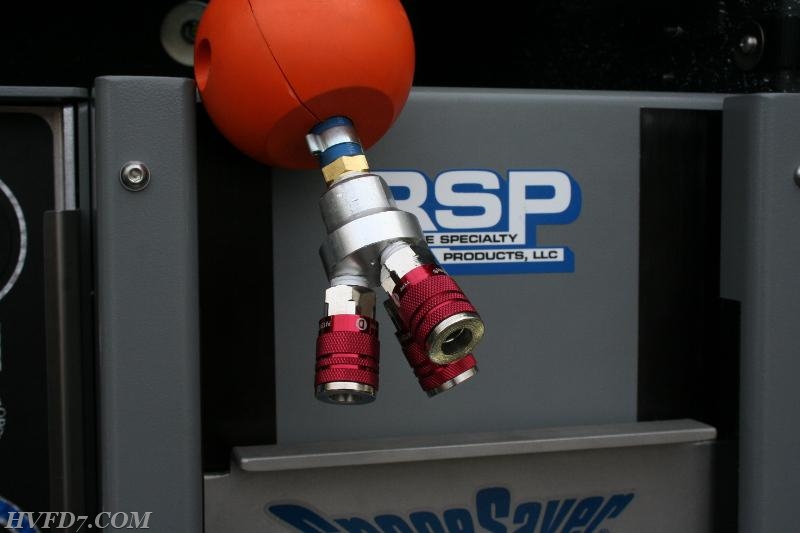

Bot Air reels will have a "Tri" manifold on them to make sure we can operate with all other Rescue Companies in the area
|
|

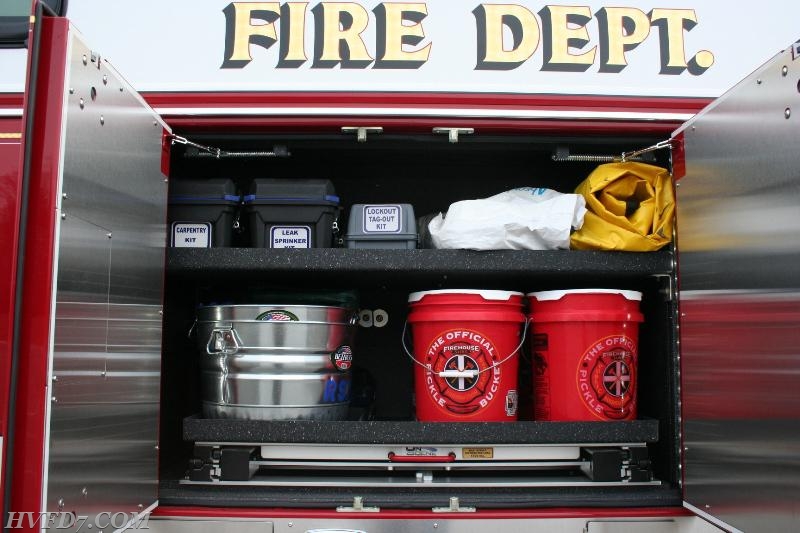

Overhaul/Salvage/Spill Compartment: The top shelf has a Lock out tag out kit, Leak kit, Carpenter Kit, Floating absorbent, Pop up spill pool, Salvage buckets, Numerous Salvage tarps, 4 5 Gallon buckets of absorbent(Courtesy of Firehouse Subs in California, MD), Sump pumps, and a roll of plastic
|
|
|

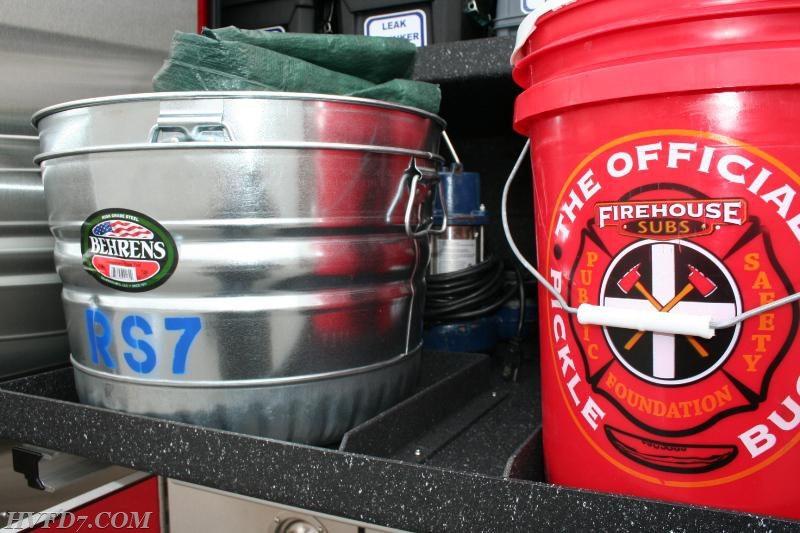

Salvage Buckets, Salvage tarps, 2 sump pumps, and 4 absorbent buckets
|
|

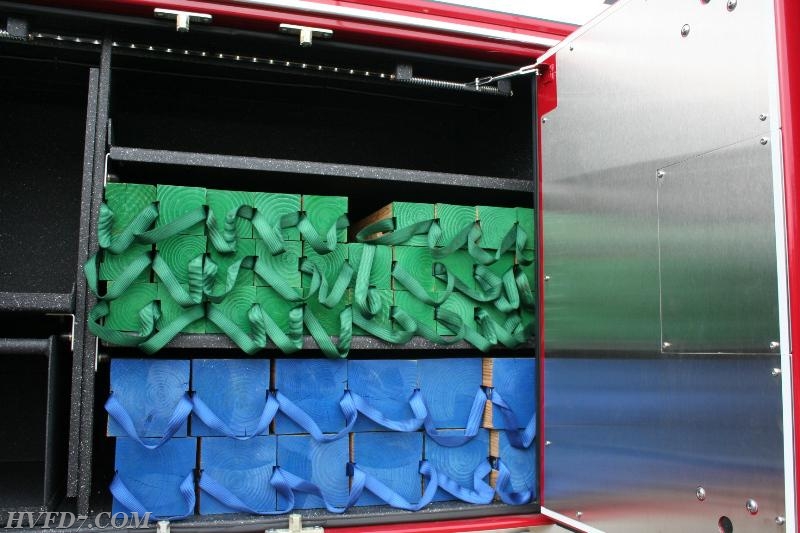

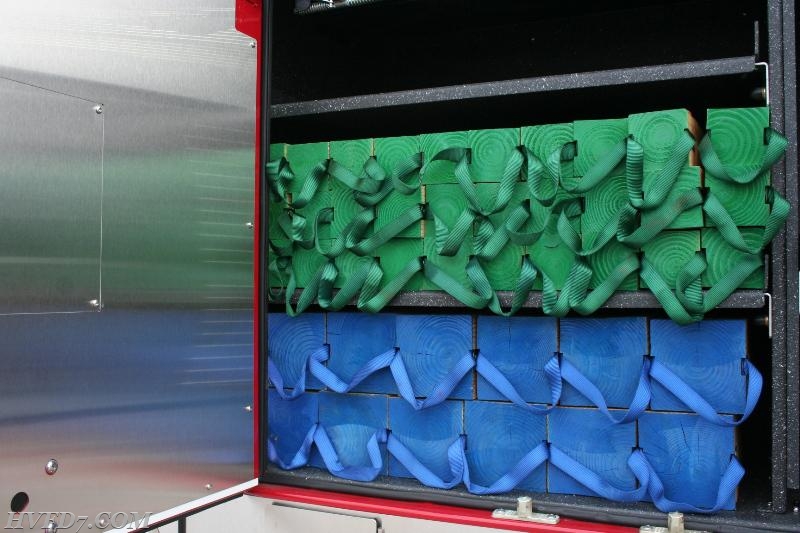

Cribbing Compartment: Both cribbing compartments are matched. Each will hold 12 6x6x24, 30 4x4x24, 4 6x6x24 Wedges, and 4 6x4x24 Wedges. We will also carry 2 Rapid Boxes on each side with each side carry the same amount of cribbing, One rapid box will carry 6 4x4x24 pieces and 6 4x4x24 wedges. The second rapid box will carry 12 2x4x24 pieces and 6 2x4x24 wedges. This doubles the amount of cribbing we had on our previous Squad
|
|
|

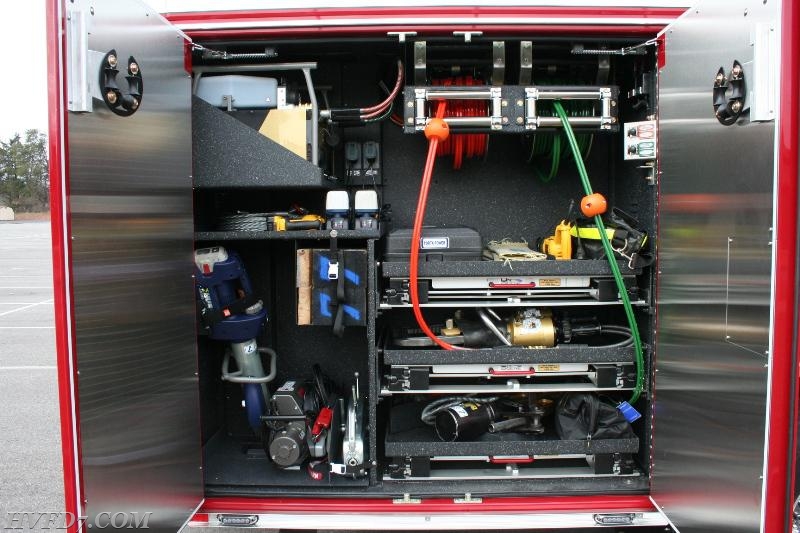

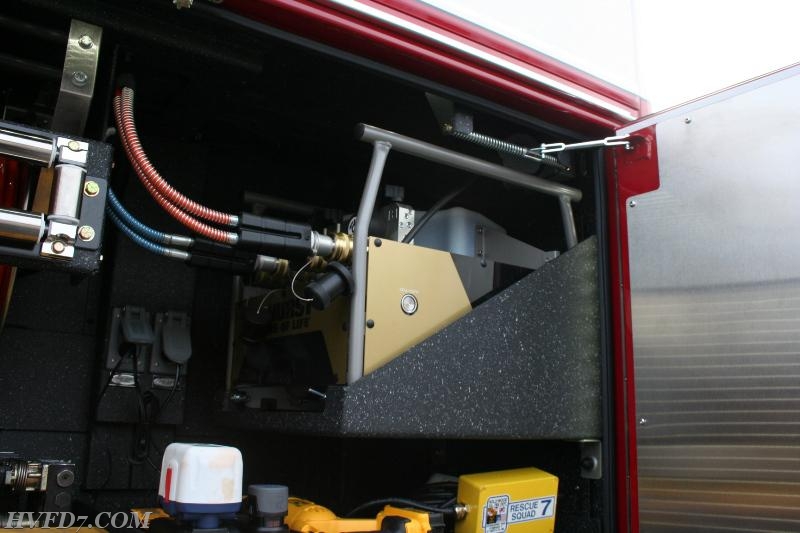

Extrication compartment Drivers Side: The HURST System is a Hurst "Quad" Pump with Turbo Mode. We will run two reels from each pump keeping the pump in Turbo Mode. Turbo mode will allow our tools to run at twice the speed as normal.
|
|

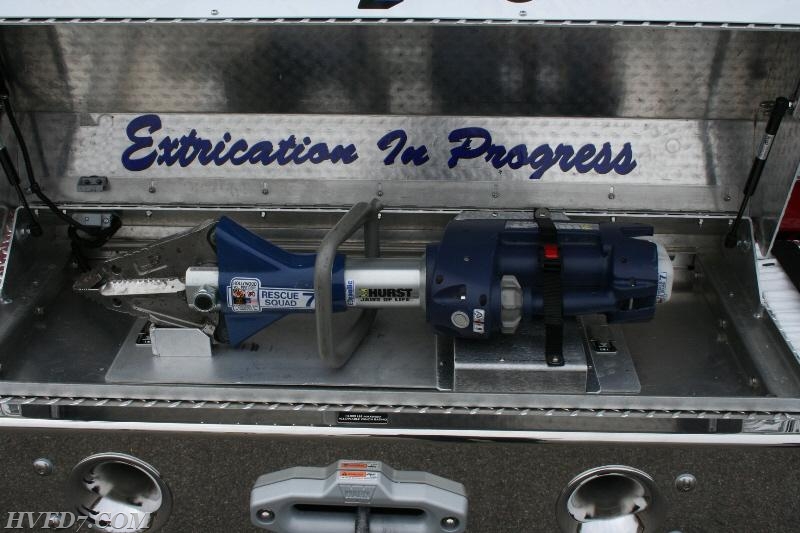

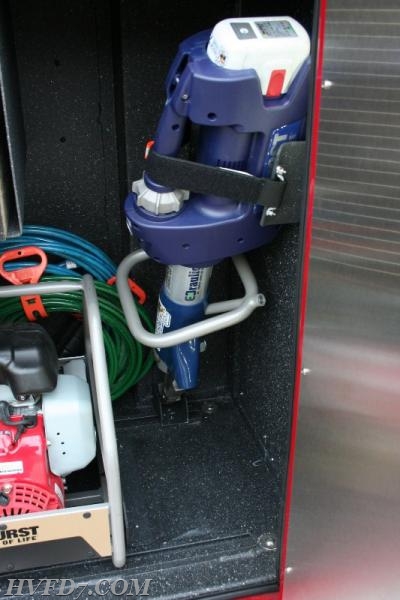

The Drivers side will have an eDraulic Combi tool
|
|
|

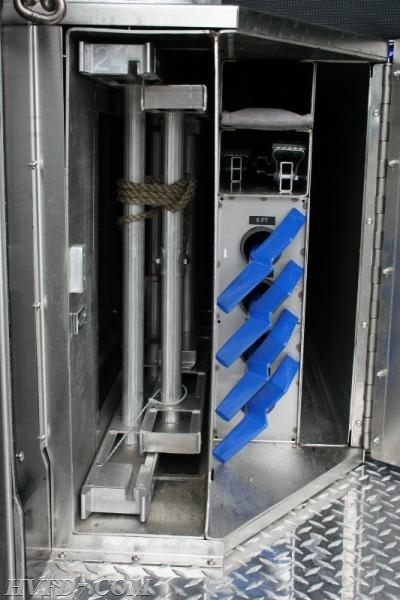

We will have 4 step chocks on each side for easy access in the extrication compartment
|
|

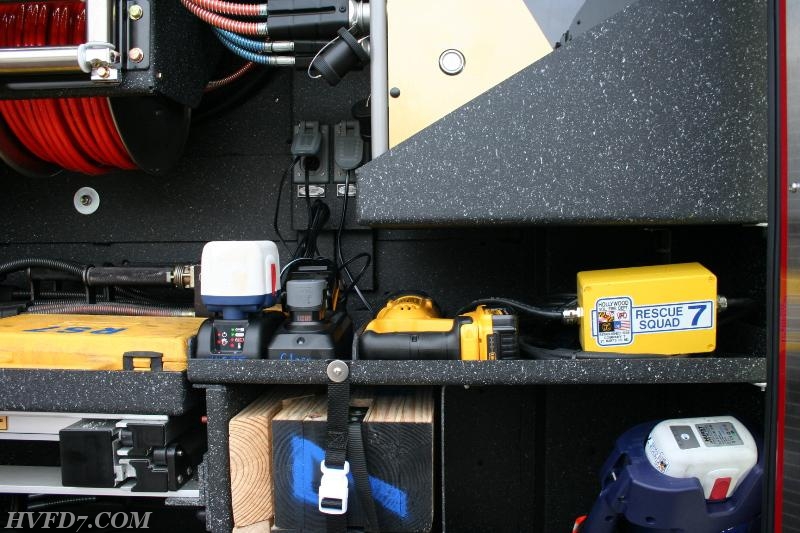

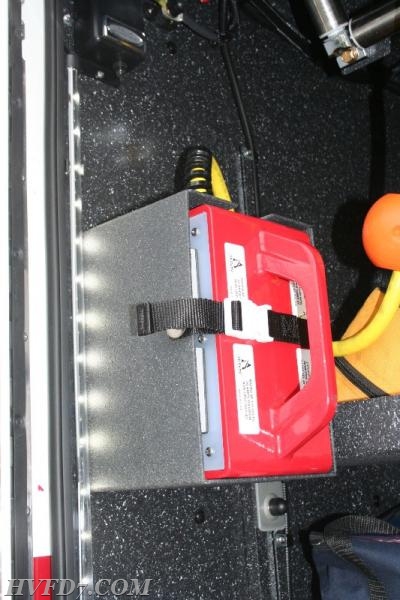

With so much going to battery operated we have batteries available for all extrication equipment such has the eDraulic Tools, DeWalt SawZall, and Glass Cutters. We have a back up 110V batter conversion for the eDraulic tools as well.
|
|
|
Custom Bracket for the new ML-28 Defender Spreaders
|
|
The ML-28 Spreaders with the extrication tool bag. This bag will be pulled at every accident. It includes numerous tools from air bag covers to battery cable cutters.
|
|
|

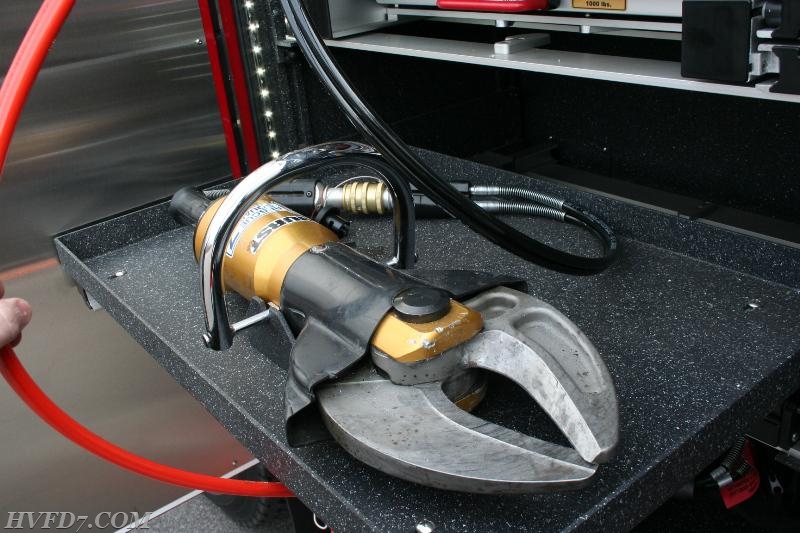

One of the 2 pre-connected cutters on the unit
|
|
One of the new Quad Pumps
|
|
|

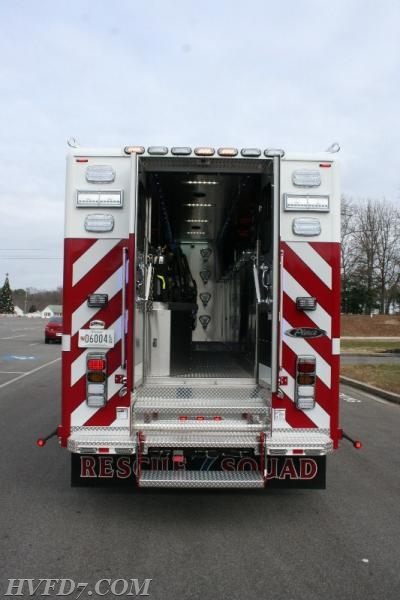

The back side of the Rescue Squad
|
|

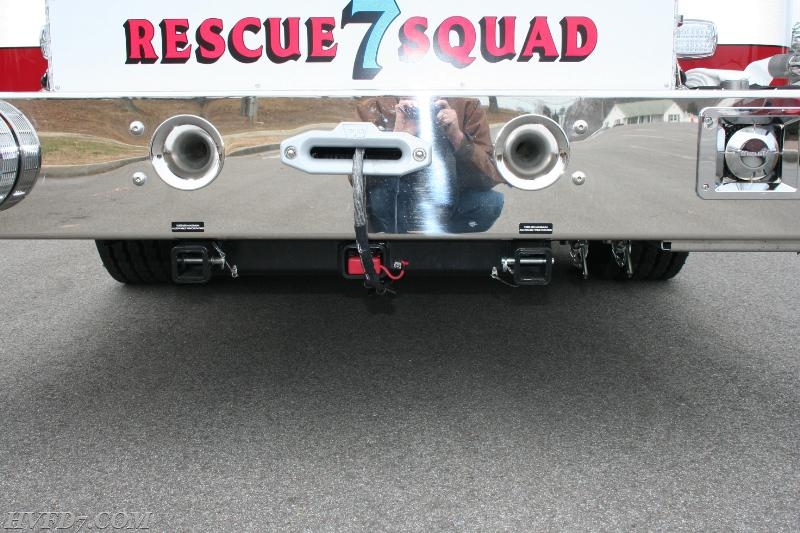

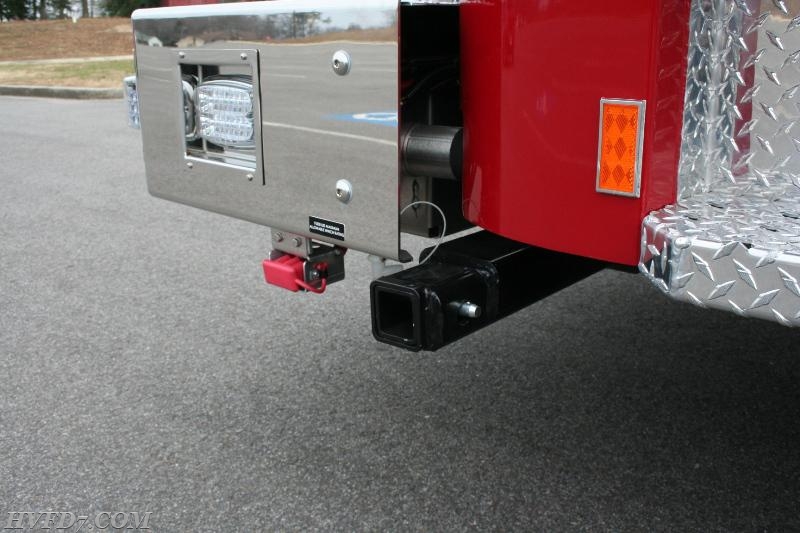

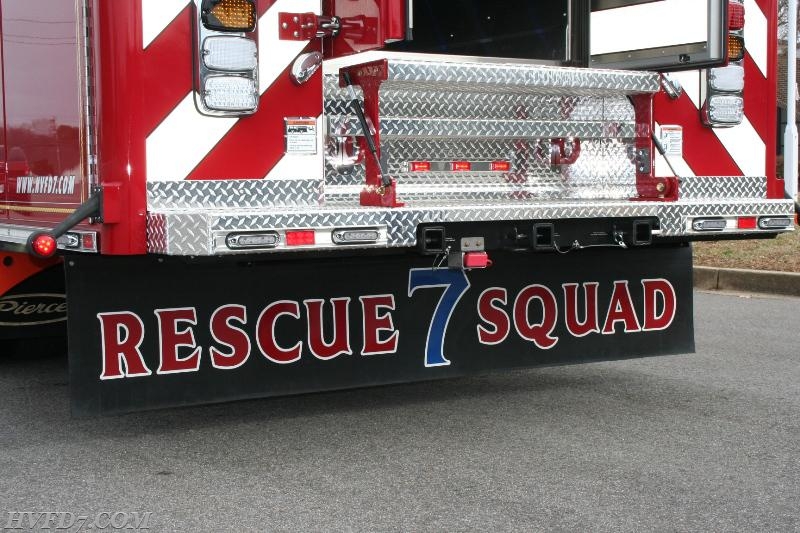

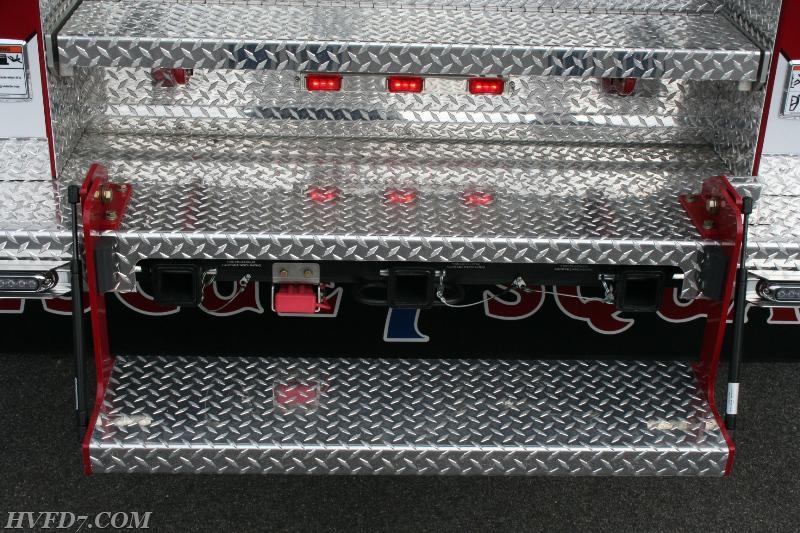

The rear step is hinged to reduce any damage to the unit. Also we have 3 receiver tubes for anchor points and the portable winch. These are all rated for 9,000#.
|
|
|

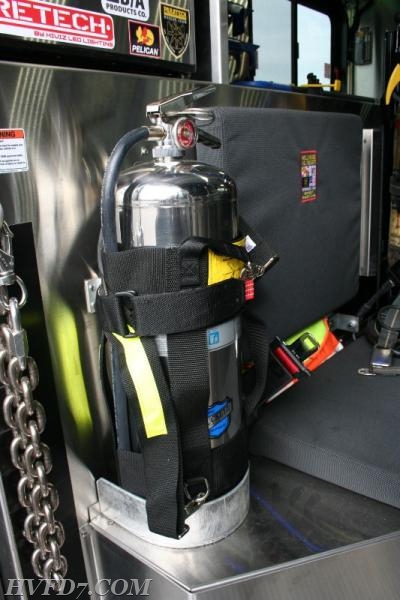

2 gallon Water Extinguisher sits at the rear of the bench for easy use and quick access.
|
|

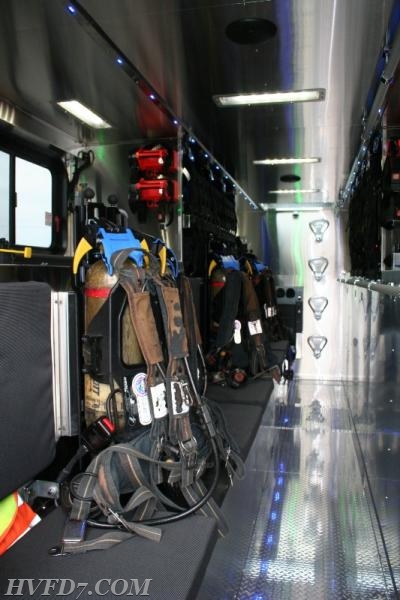

The walk in will allow for 6 Firefighters to safely sit with no SCBA hittin them in the back.
|
|
|

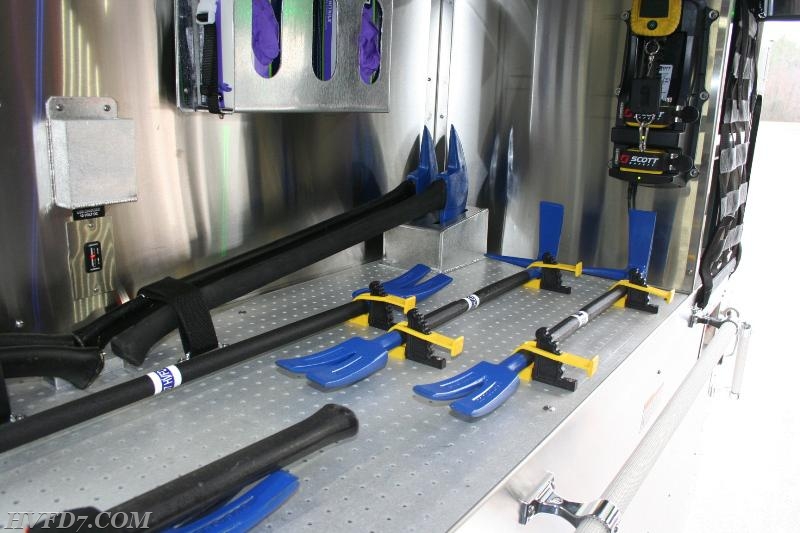

One side of the walk in holds all the forcible entry tools
|
|

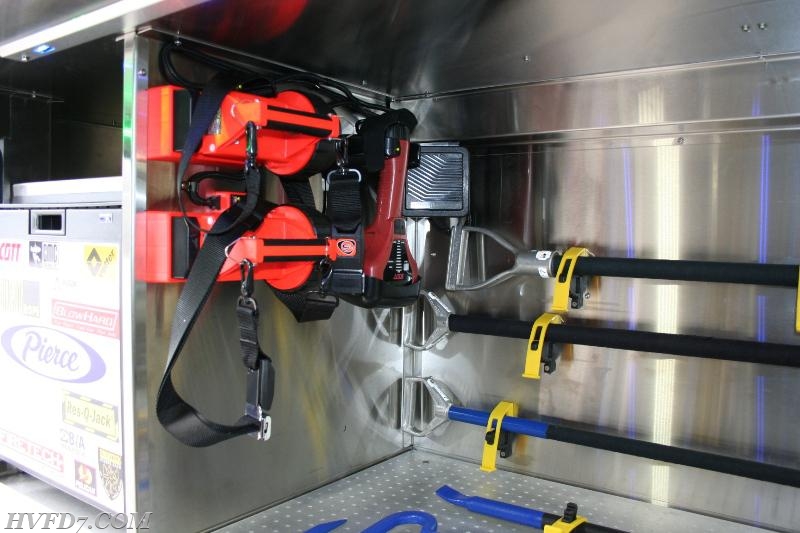

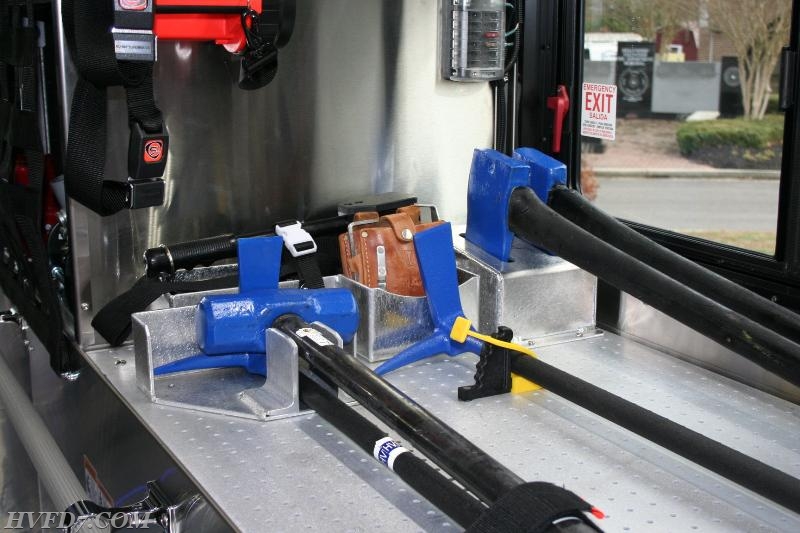

Some of the custom brackets for the forcible entry tools
|
|
|

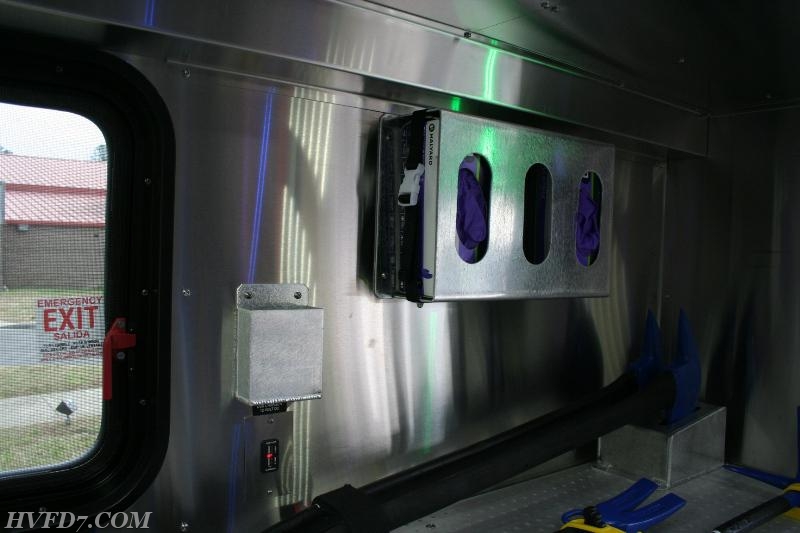

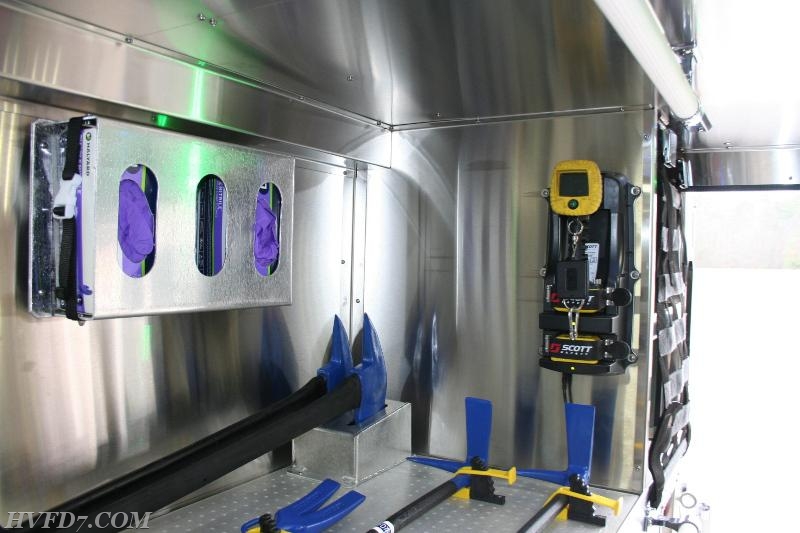

Custom make medical glove bins along with a place for the firefighters to put cell phones
|
|

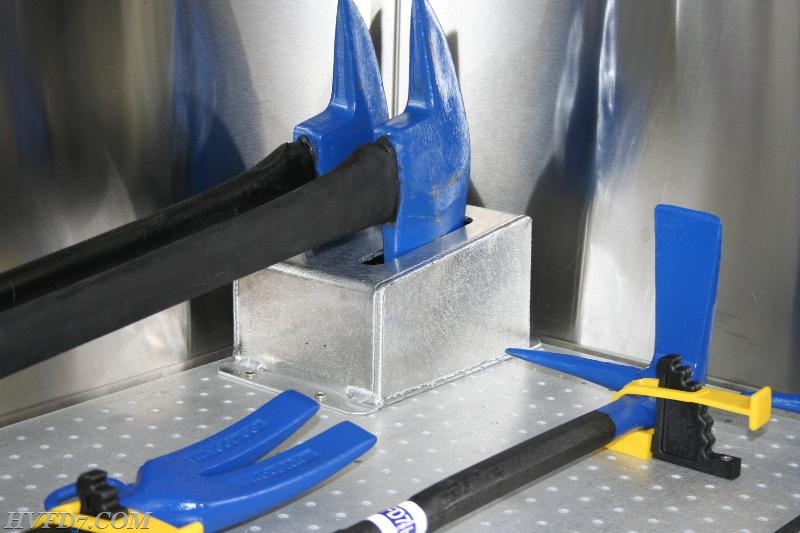

More Custom brackets for tools
|
|
|
Several 30" bars and 1 52" bar are located on the shelf
|
|
The Thermal Imager for the rear is located on the wall prior to walking out of the walk-in. This is placed at this location so it is seen and will always be taken on fires
|
|
|
Each side on the wall will have 2 flash lights
|
|

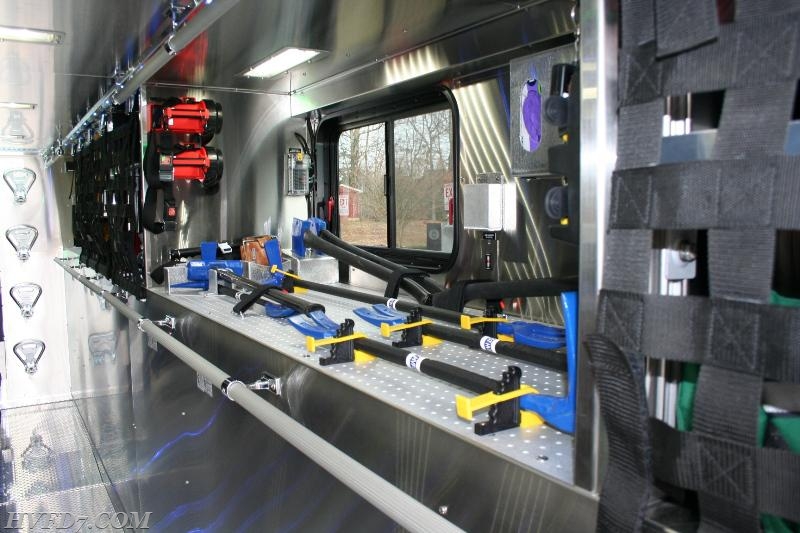

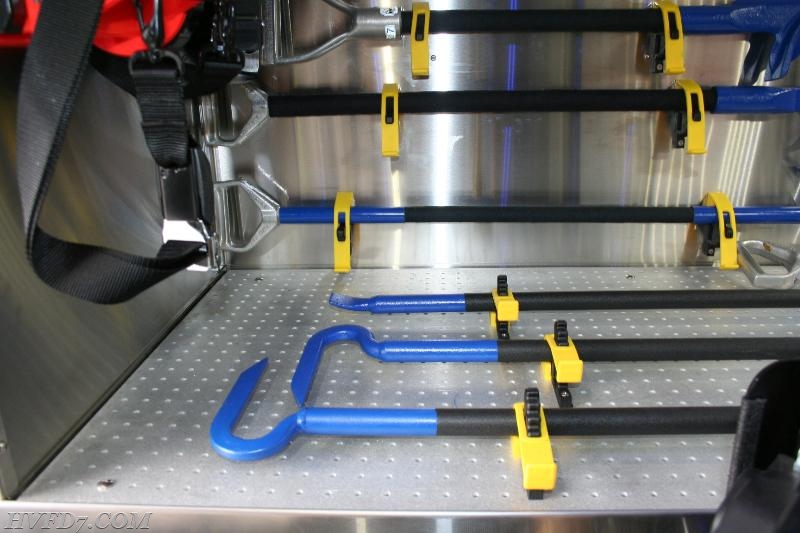

The opposite side from the forcible entry tools will hold hooks. We will carry 7 different hooks ranging between 3' to 5' hooks
|
|
|
The hooks are all secured with Pac Brackets
|
|

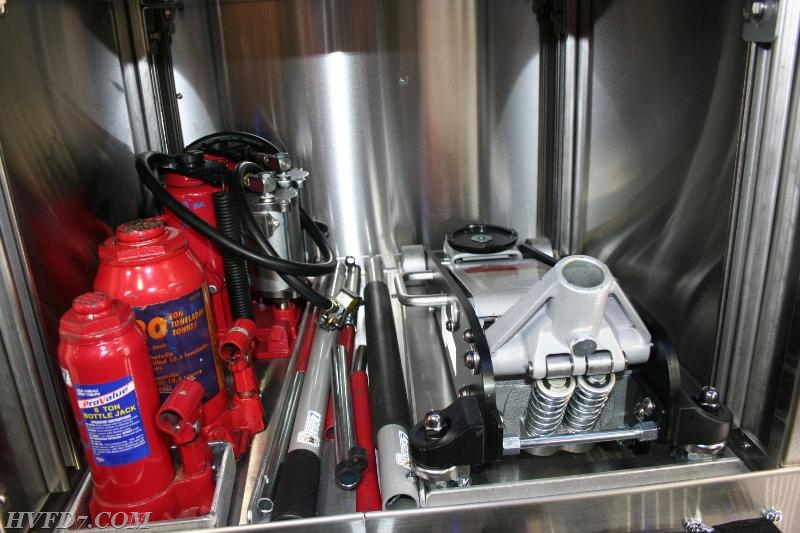

Inside the walk in on the Officers side is some of our lifting equipment. In this area we have several bottle jacks and a 2 ton speed floor jack.
|
|
|
We have numerous air bags that range from 1 ton to 29 tons. The bags all together have a total of 150 tons of lifting!!!!
|
|
The Pelican cases will hod both controllers for the air bags.
|
|
|

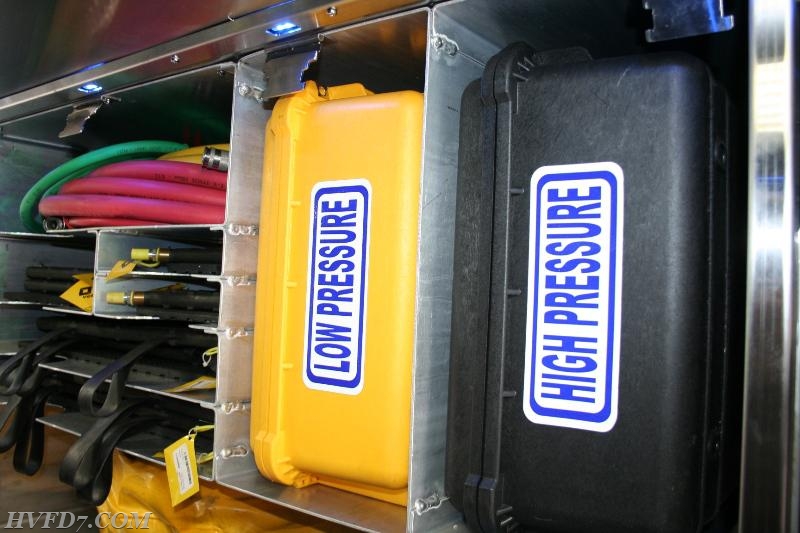

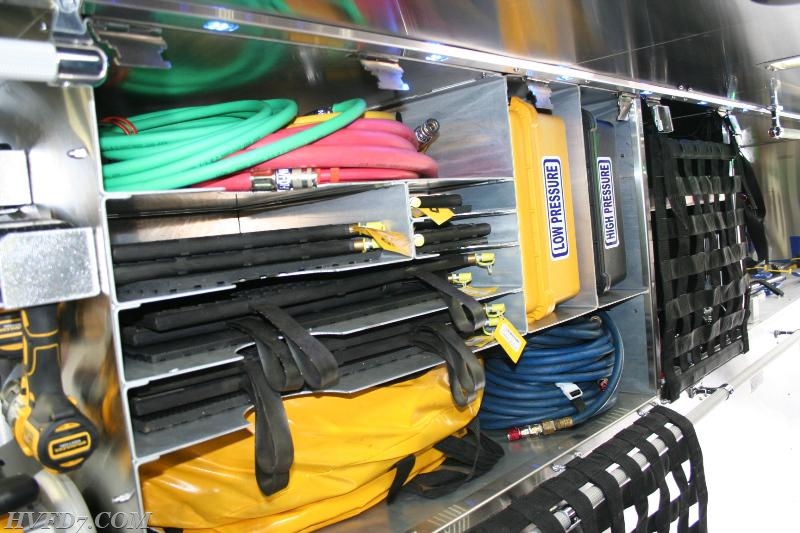

Low Pressure Air Bags.
|
|

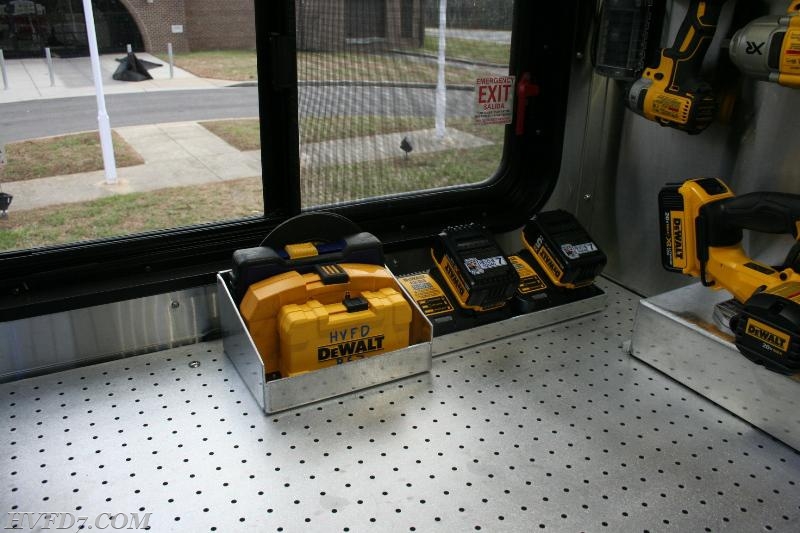

The front window are will hold our DeWalt Battery Operated Tools
|
|
|

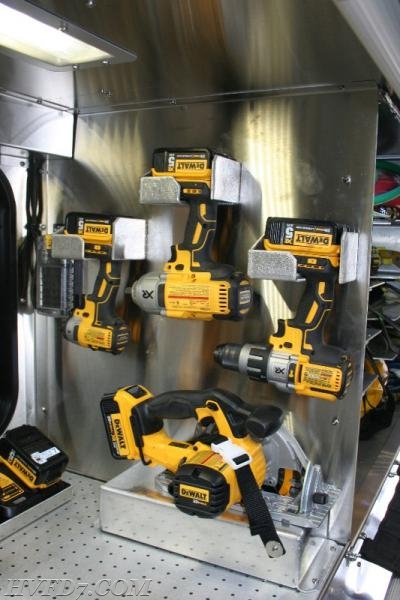

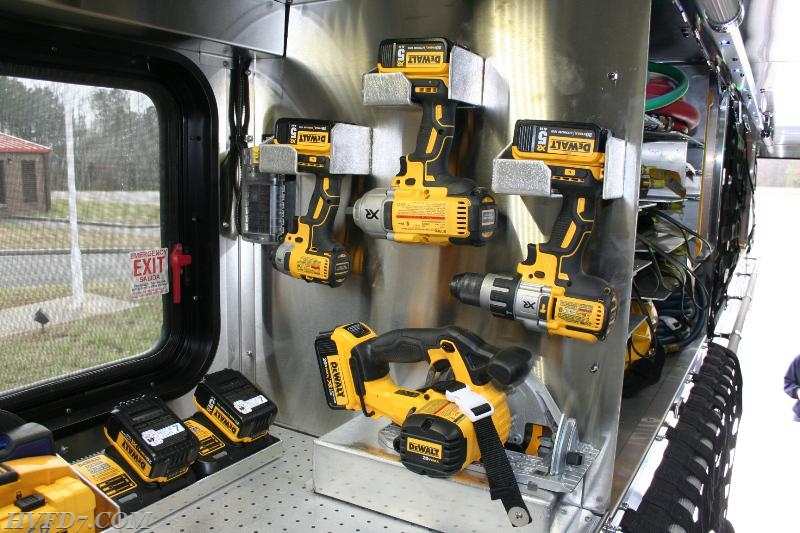

The DeWalt Battery Tools ready to go
|
|
2 Spare 5Amp Hours batters along with 3 different bit boxes.
|
|
|
Just like our previous Rescue Squad, We have a CD/Radio located in the back for the firefighters. In the webbed compartment
|
|

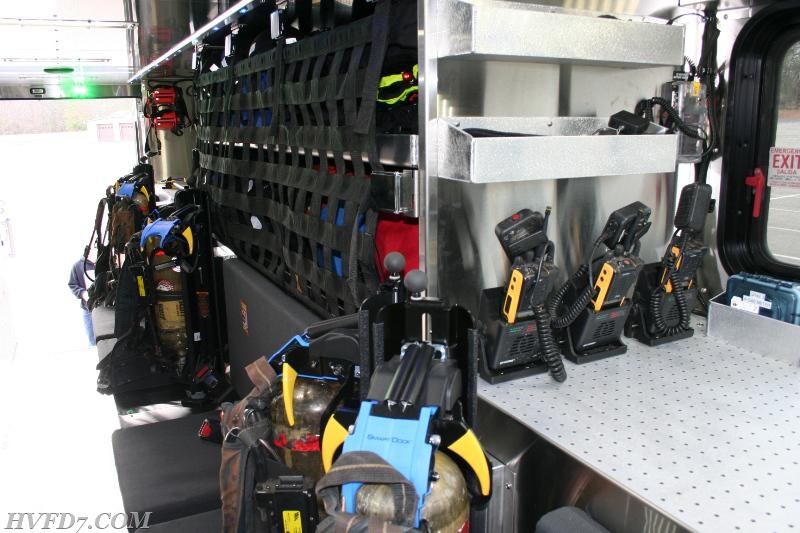

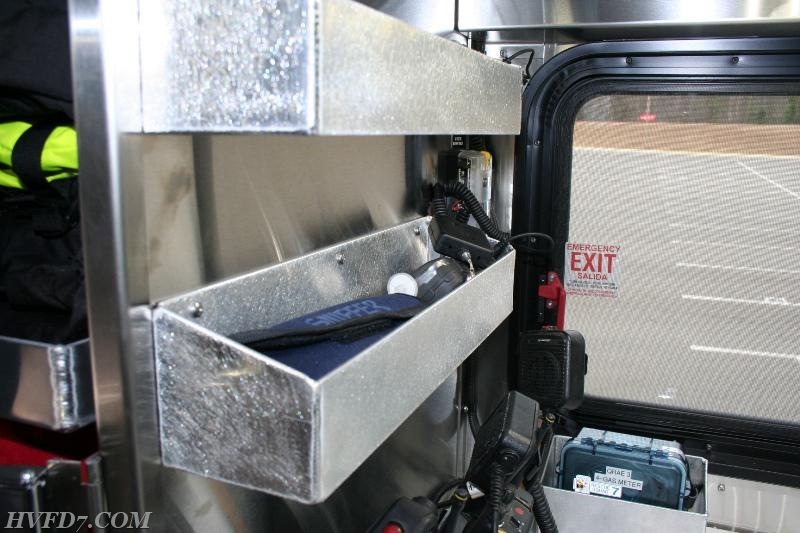

Portable Radios and Air Monitoring Meters are located in the window area on the drivers side
|
|
|
Some of the air monitoring meters
|
|

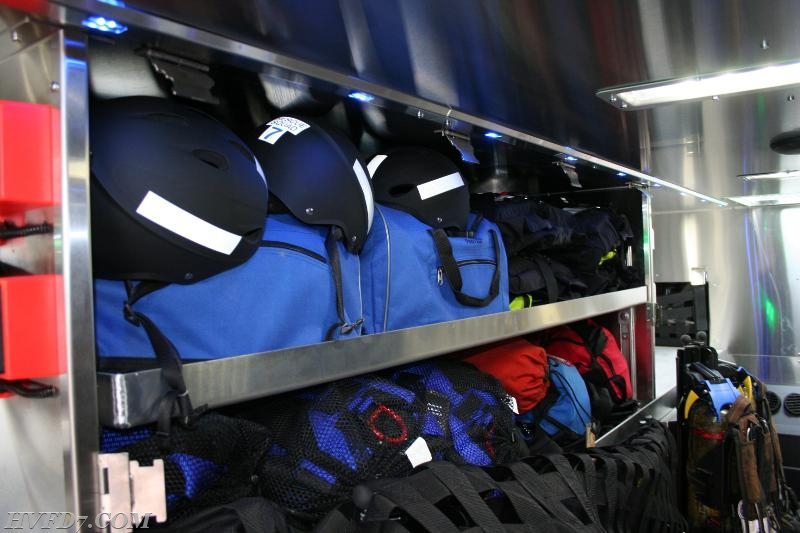

All the Rope Rescue Equipment and Water Rescue Gear is located in the Walk in on the Drivers Side
|
|
|
Under the bench seat is a 24' extension ladder, a 10' attic ladder, elevator pole, and 4 long hooks
|
|

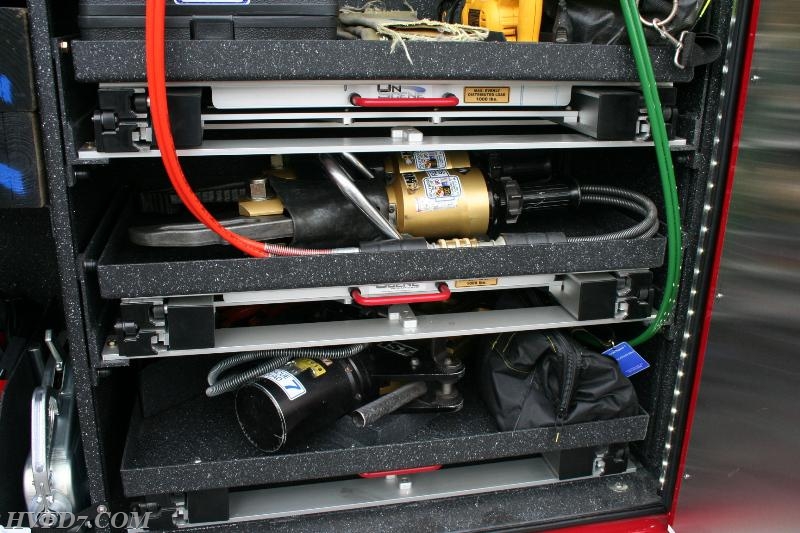

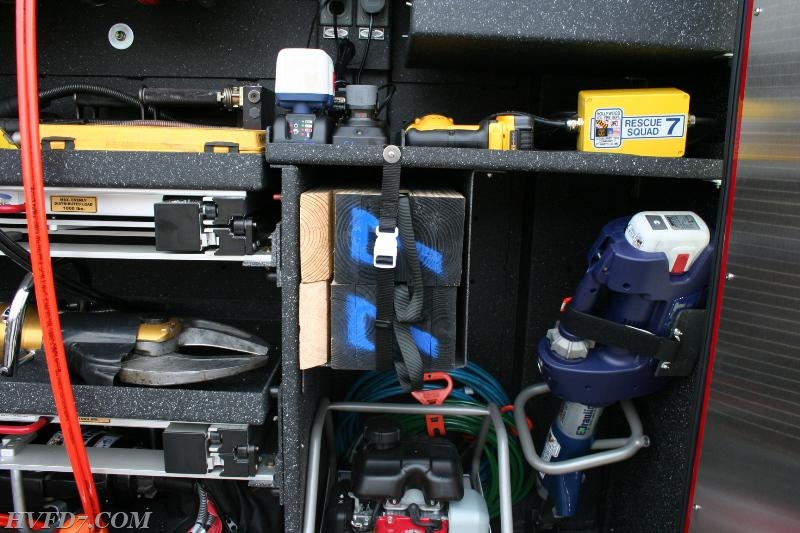

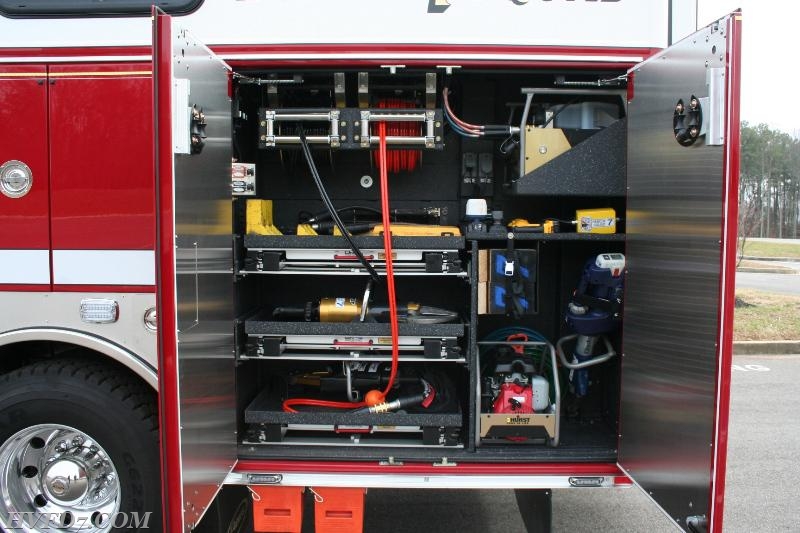

The Officers side extrication compartment matches the drivers side. This side also has a pre-connected spreader and cutter. The only difference in this side with the extrication equipment is it has an eDraulic O Cutter.
|
|
|

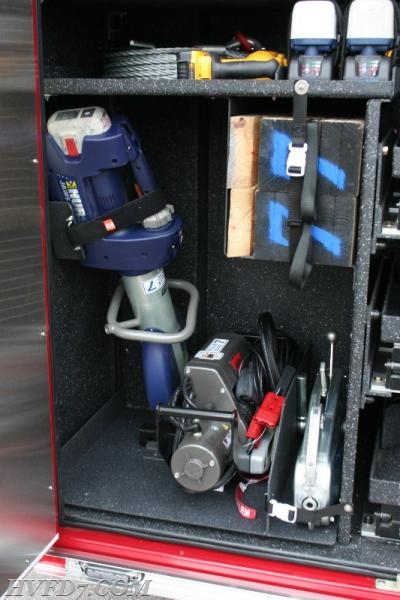

The eDraulic O Cutter, Portable winch, and Grip-hoist
|
|

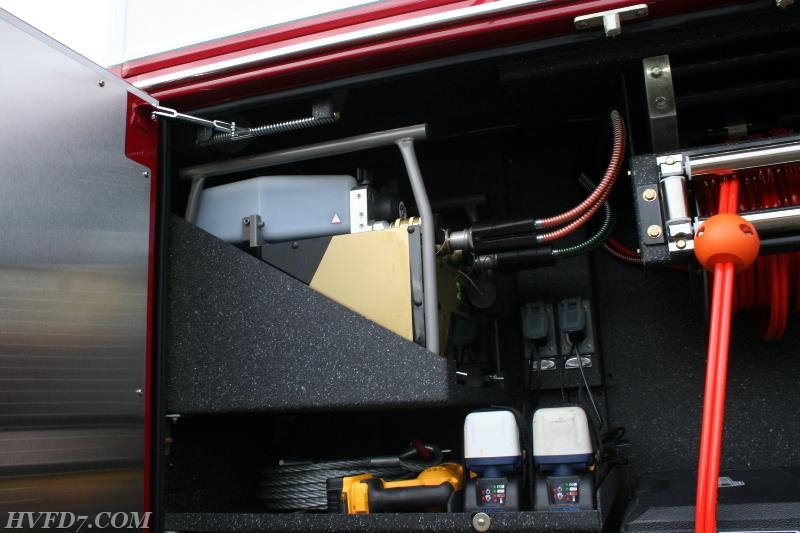

Grip-hoist wire rope, SawZall, and Spare batteries
|
|
|

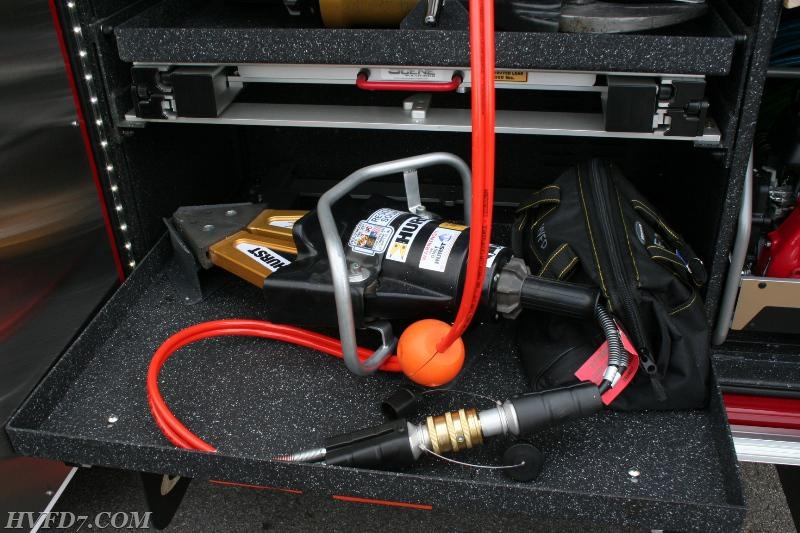

Pre-Connected Spreader and Cutter
|
|

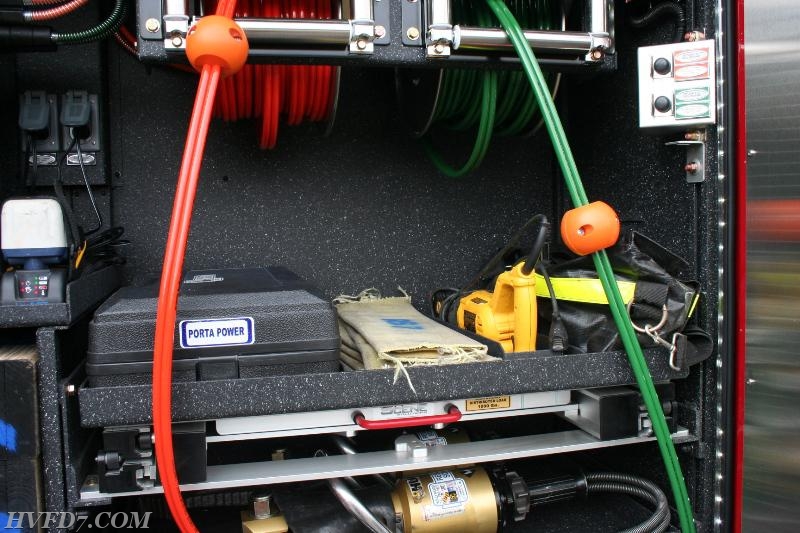

Top shelf of Officers side Extrication Compartment will hold a Port-a-power, 110V SawZall, and brake pedal cutters
|
|
|
Quad Power unit
|
|
Cribbing Compartment Officers side
|
|
|

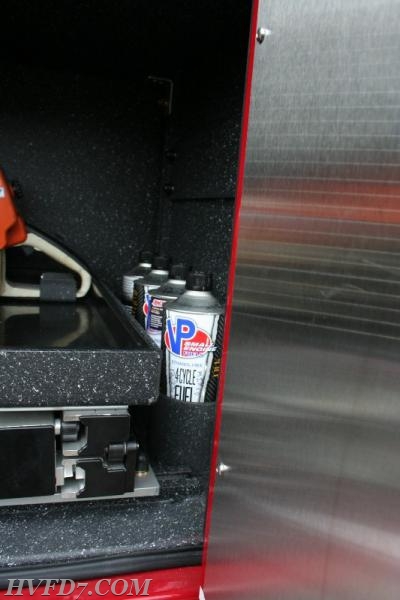

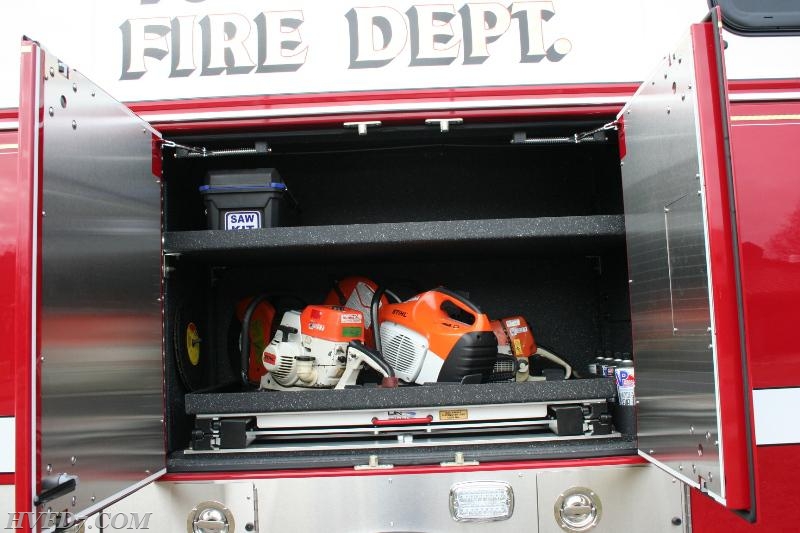

Saw Compartment: Saw Box on the top shelf with 2 Circular saws and 1 Chain Saw(With Roof Guard) on the bottom shelf. Numerous spare blades and fuel
|
|
|
|

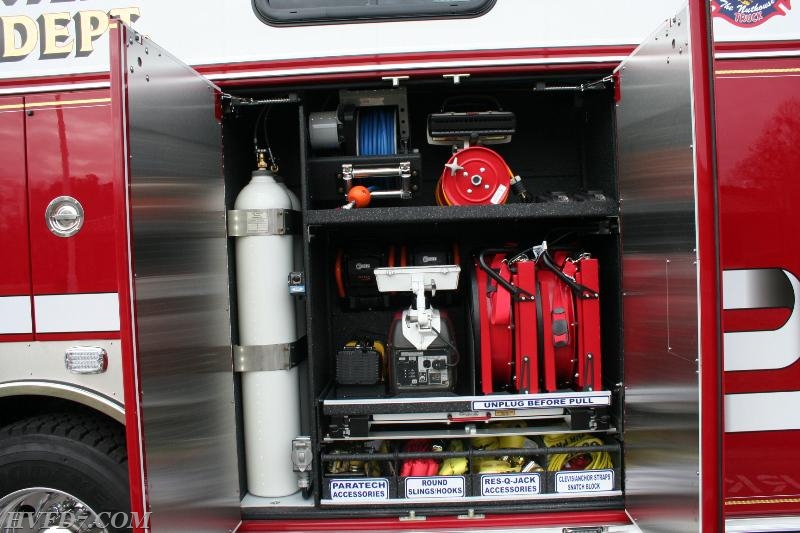

Officers side P-4 Compartment will hold our lights and fans. Also our Low pressure Air reel and portable bins. We will carry 2 blow hard fans and a portable generator. Numerous lights and cord reels are also located in this compartment. The 4 portable bins will carry stabilization equipment that will go with equipment in the next compartment.
|
|

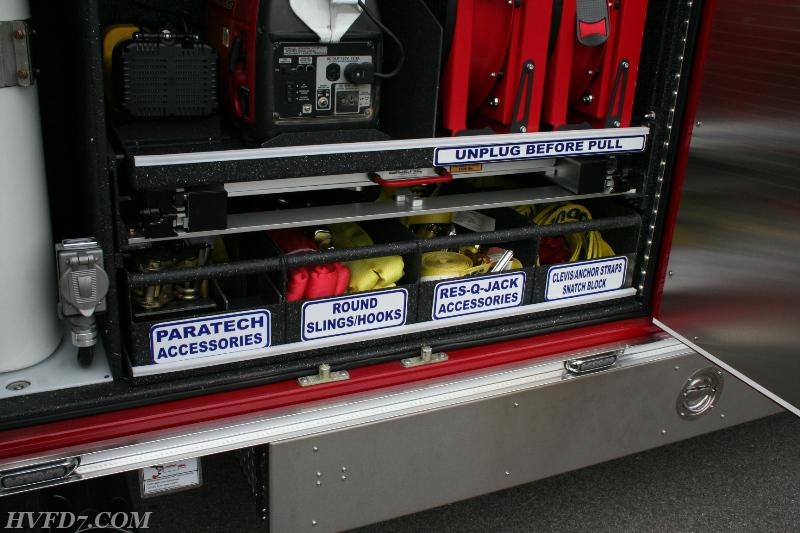

The 4 bins will carry Paratech Strut Accessories, Res-Q-Jack Accessories, and numerous Slings and Straps.
|
|
|

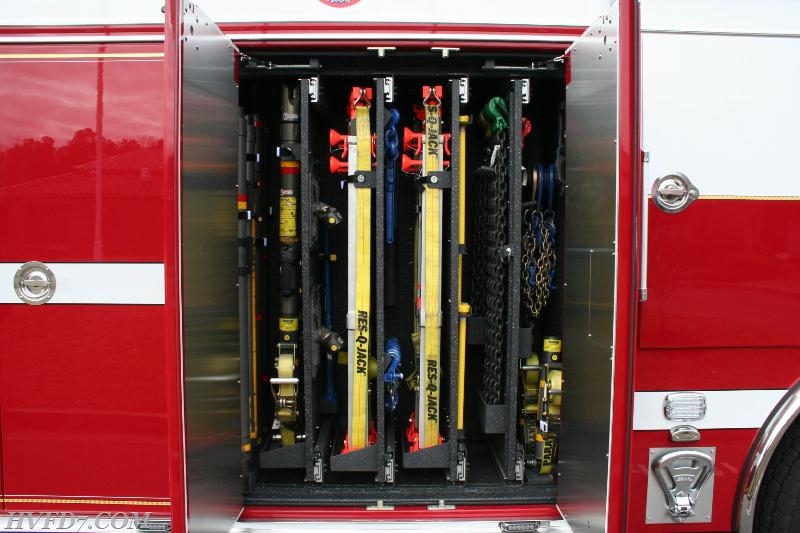

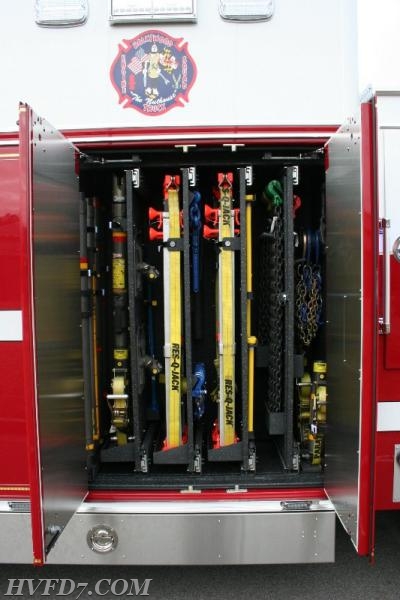

The P-5 Compartment is our stabilization Compartment. We have a ton of equipment located in this space. This compartment holds 4 complete Res-Q-Jack structs, 2 Complete Paratech Struts, Numerous extensions for the Paratechs, Several chains, and numerous clusters.
|
|
|
|

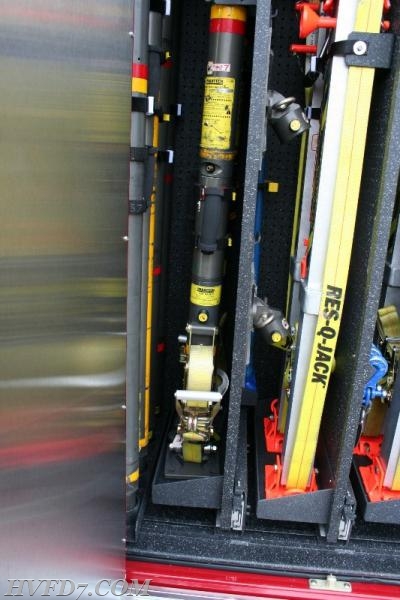

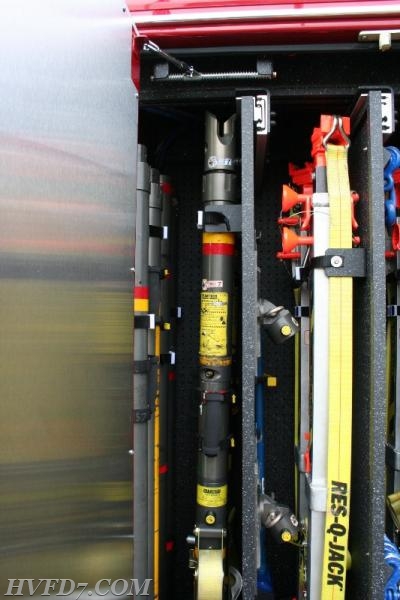

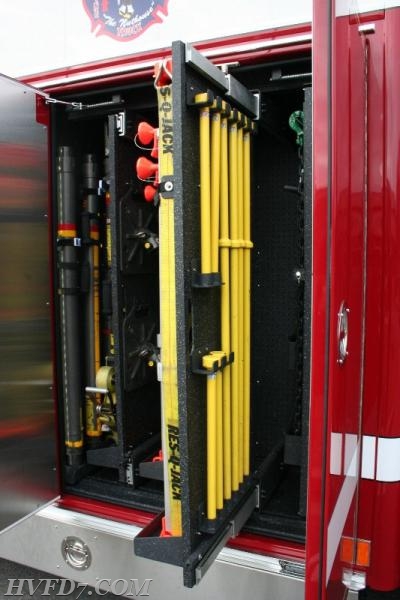

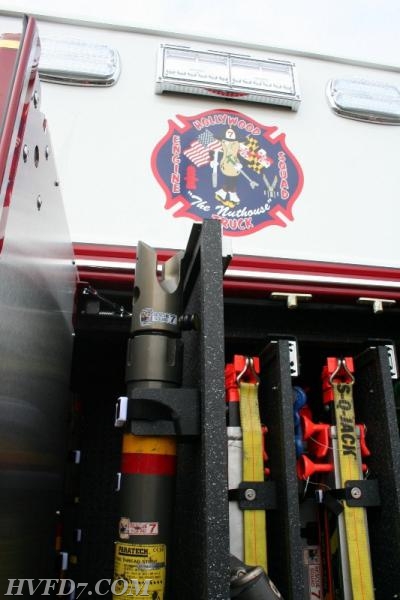

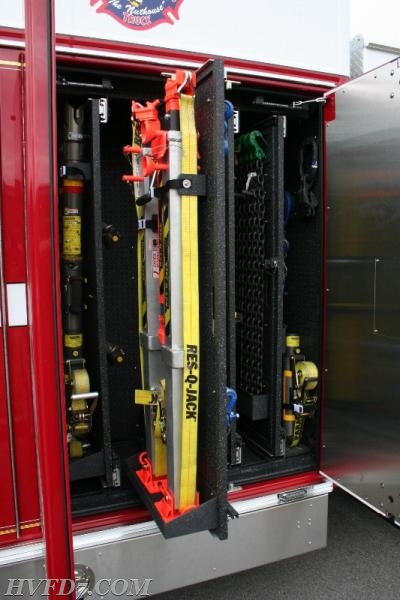

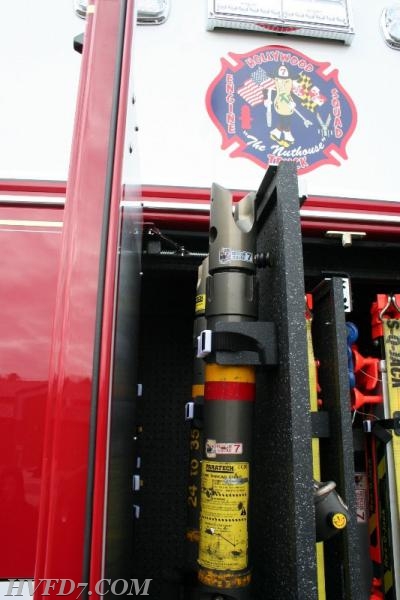

The Paratech and Res-Q-Jacks
|
|
The bases with custom brackets
|
|
|
Each board slides out for easy access
|
|
|
|
Back side of the 1st board has 2 additional 12" base pads and a sledge for pickets
|
|

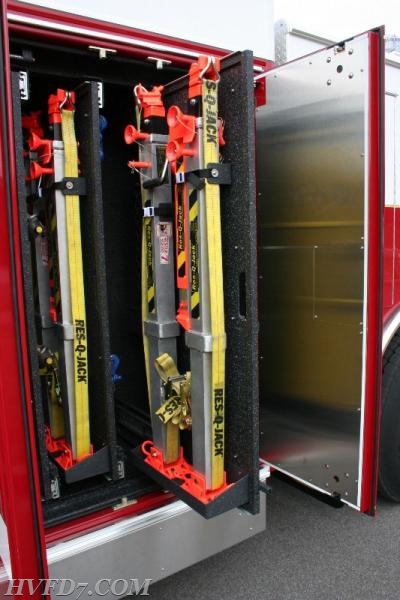

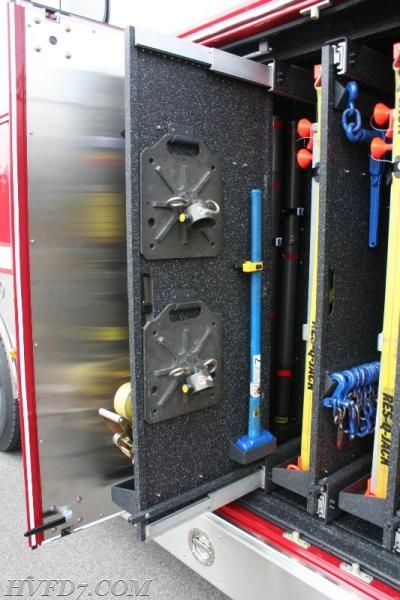

The Rescue Jacks Board
|
|
|

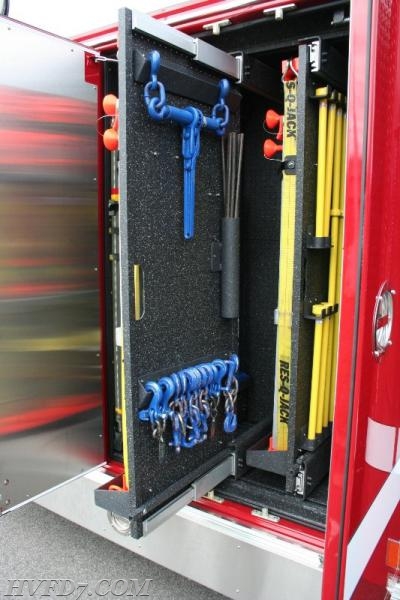

The back side of the Res-Q-Jack board has a chain binder, numerous clusters, and pickets for the Paratech struts.
|
|
The different clusters
|
|
|
Rescue Jack Board
|
|
The back side with pickets
|
|
|
4 short pickets and 4 long pickets
|
|

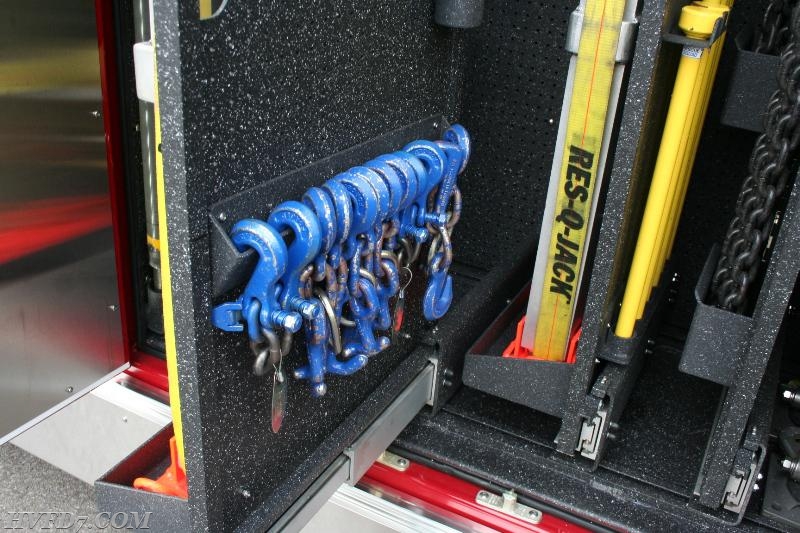

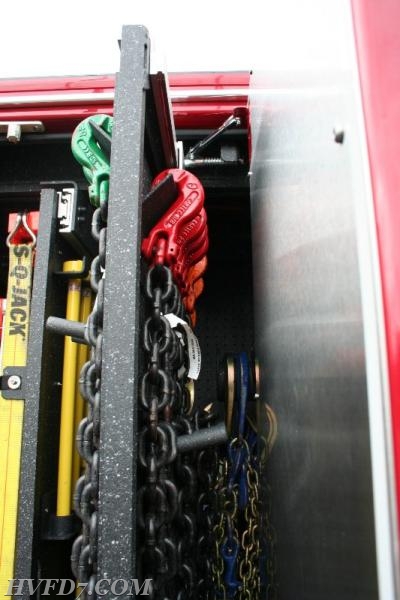

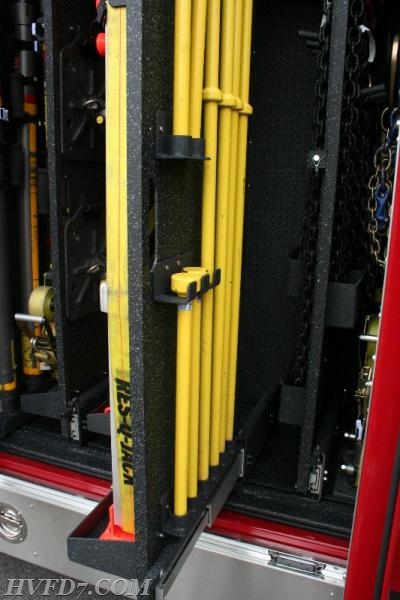

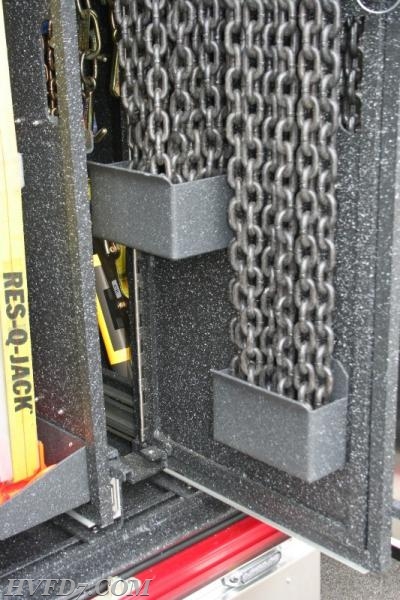

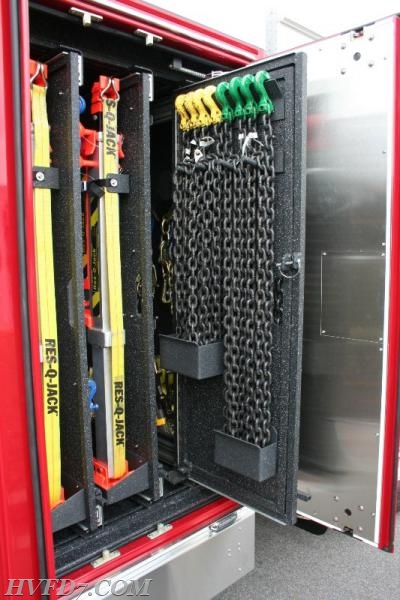

The chain board has chains on both sid
|
|
|
Custom holds for the chain
|
|
Chains on both sides of the board
|
|
|
A 3/8" master link
|
|

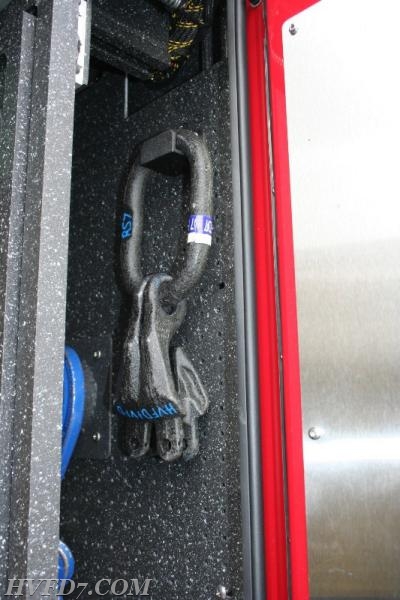

Officers side transverse Compartment. The Officers bar and hook is located on the bottom shelf. The little Giant ladder and stokes basket is easy to access from this side.
|
|
|
|

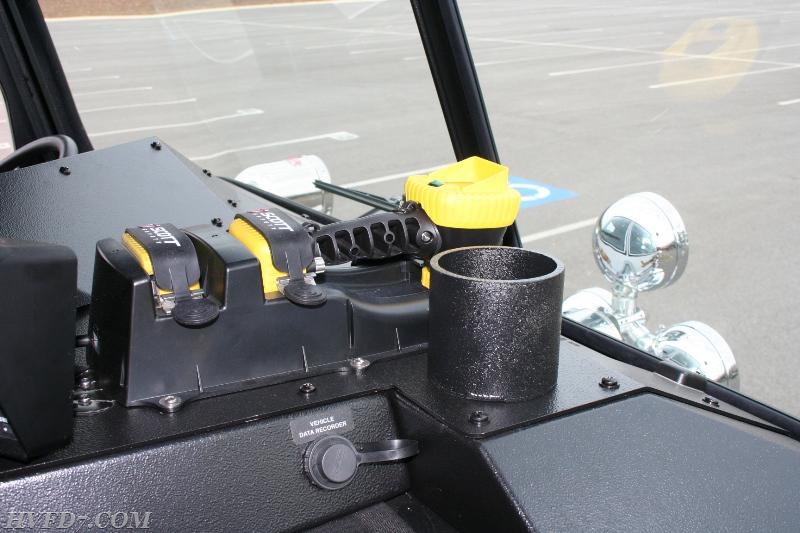

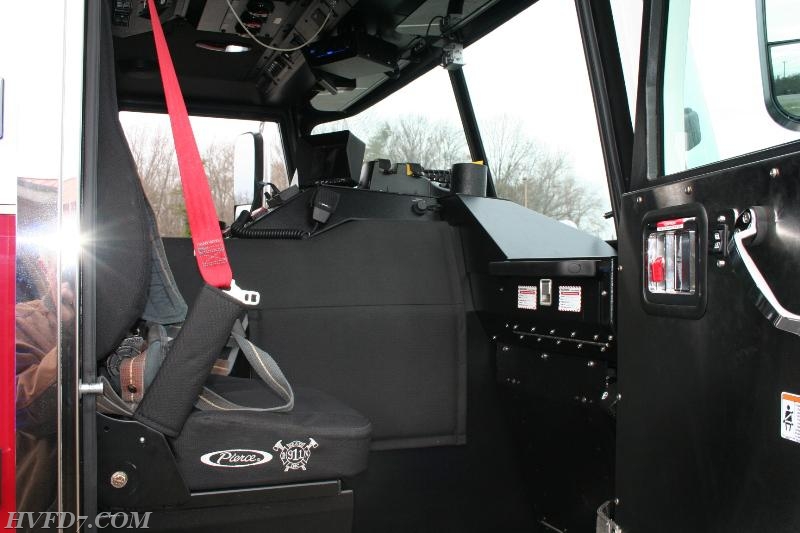

Officers seat. We will have a Mapping computer located in front of the officers seat
|
|
|
The Officer will also have a Thermal Imager
|
|

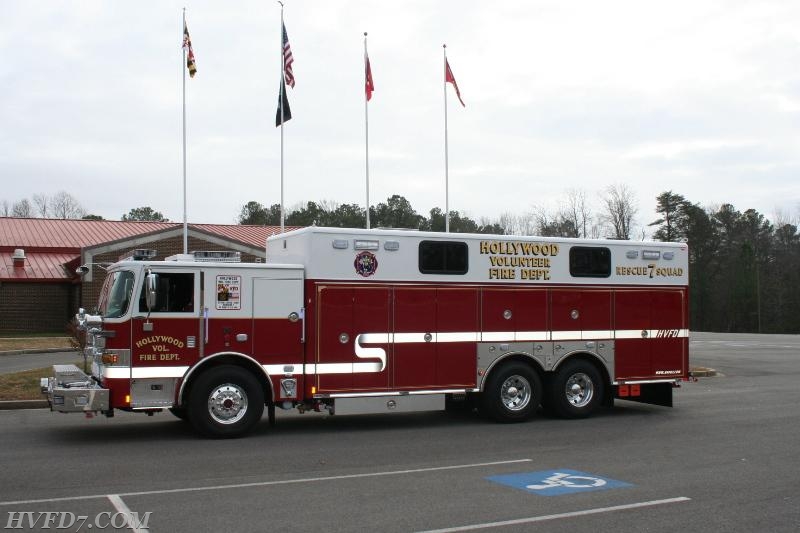

Officers side of the Rescue Squad
|
|
|

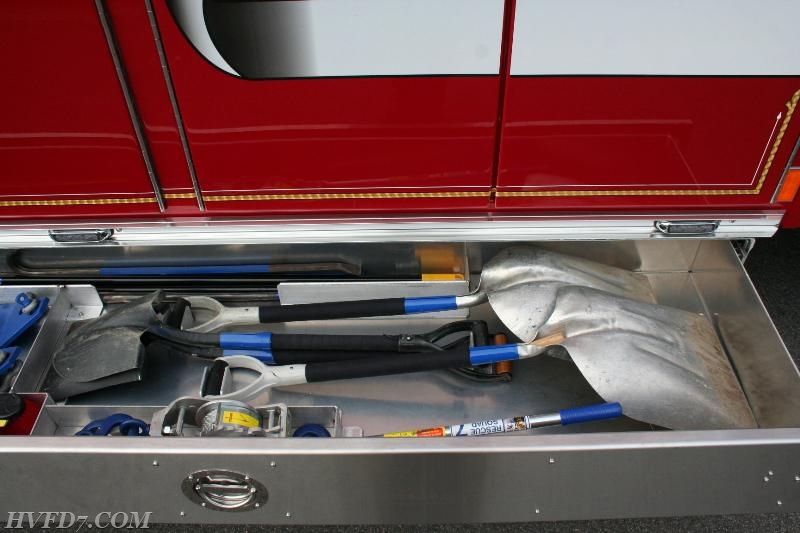

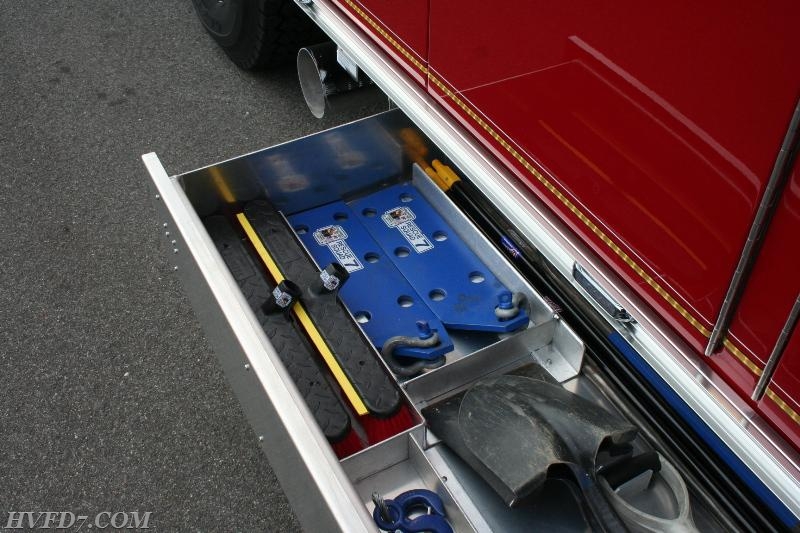

Umderbelly Compartment on the Officers side. We will carry our long tools such as shovels, brooms, squeegees, Cable Com-a-long, and picket holder
|
|
Broom heads and picket holder are located in this compartment
|
|
|

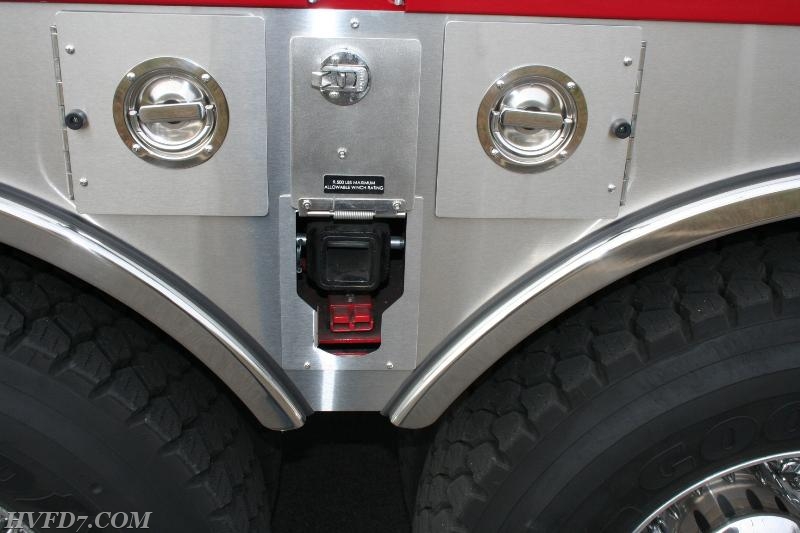

Between each Tandem is a receiver tube for an anchor point and for the portable winch.
|
|
|
